Features:

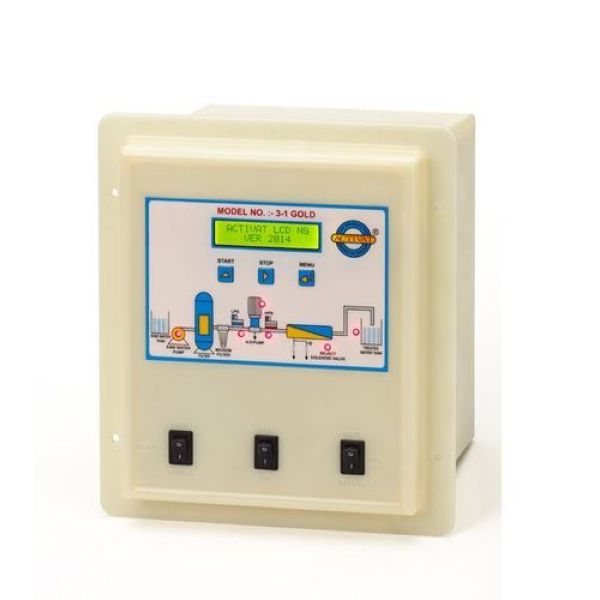

Activat Model : 3-1 Gold microprocessor based panels are ideally suited for small and medium sized RO plants.
Complete operating logic of the process is pre -programmed.
Inputs from LPS, HPS and Level Switch (LS).
Four outputs in the correct operating sequence namely Raw water pump (RWP), High pressure pump (HPP) Flushing solenoid valve (RL2) and Cleaning Pump (CP)/Doser.
The electronics take care of required motor protection such as overload, dry running, single phasing and high conductivity.
Debounce time. (In built debounce time to avoid chattering of high pressure pump contactor due to initial dipping in suction pressure).
Time based flushing.
New improved RO control panels with additional features such in built conductivity,one auxiliary input (can be configured as RWLVL, RL2, ORP, Dosing, TP I/P) & more.
Model –
