Specification model
drilling capacity (in mild steel) 32 mm
pillar diameter 106 mm
spindle nose to table distance 625 mm
spindle nose to base distance 1000 mm
distance from spindle centre to pillar face 285 mm
taper in spindle mt. 3
number of speed 8 speed
range of speed 70 x 2000 rpm
table size 415 x 415 mm
base size (machined area) 400 x 350 mm
overall base size 650 x 440 mm
spindle travel 225 mm
pillar length 1425 mm
overall height with pulley guard 1750 mm

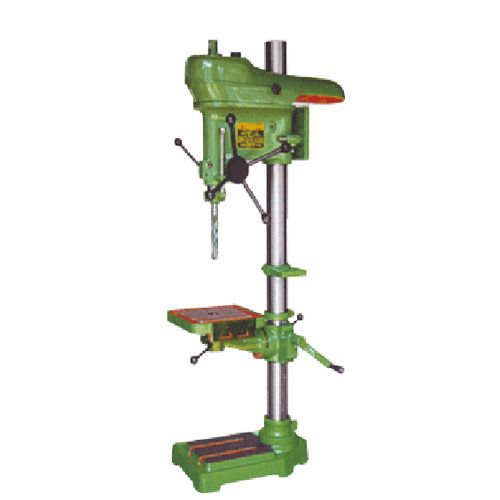

Paras Drill Machine
