Specification
Type Parameter

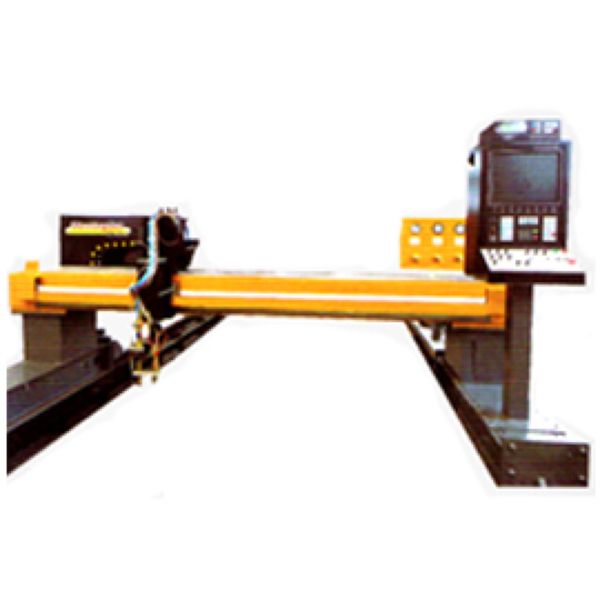

ArtHydef CNC Plasma Bevel Cutting Machine
Machine Width Made to customer requirement – 4m minimum
Rotation +/- 720 ‘legrees standard (optional infinite rotation)
The Length Of Rail According to customer requirement
Effective Cutting Width 0. 8m less than track width
Effective Cutting Length 2.5m less than track length
Plasma Bevel Cutting Thickness Determined according to Plasma System selected
Bevel Angle ±45°
Maximum speed 15000mm/min
Tool Stations • Up to 2 plasma bevel stations • Optional gas cutting torch station (single torch, triple 1orch and rotating triple torch systems offered)
• Optional Marking & Drilling systems
Cutting Mode Plasma (Standard) – Optional Flame Cutting
Servo System Yaskawa Sigma Series – Dual Rail Drive
Gearbox NEUGART Planetary Reducer
NC system Hypertherm EDGE Pro CNC
Nesting software LANTEK
Optional features Cutting Table , Fume Extraction System
