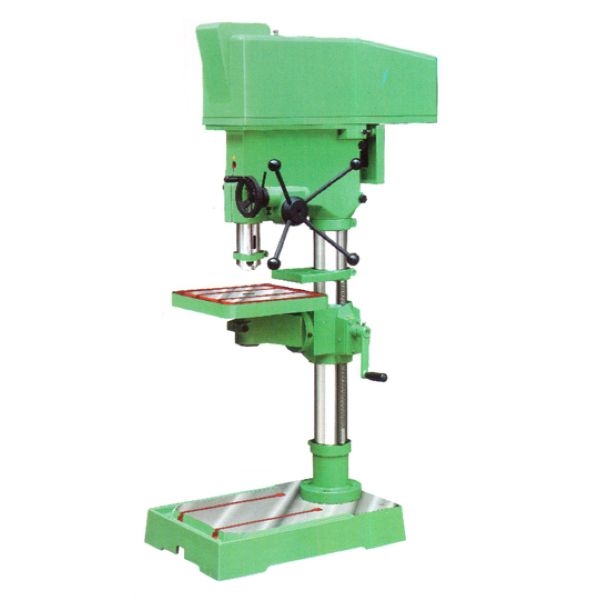

20, 25 & 32 mm Pillar type drilling machine model 20 P, 25 P & 32 P

Model No.	25 P	32 P
Capacity in mild steel	25	32
No.of spindle speeds	104 to 2651 4+4 =8	80 to 2600 4+4 =8
Number of auto feed	–	–
Spindle center to column	206	260
Max. travel of spindle	150	160
Max. dist. spindle nose to table	710	810
Max. dist. spindle nose to base	950	1120
Spindle nose Bore fitting	M.T.3	M.T.3
Diameter of table	336	385
Diameter of RAM	72	72
Base area machined	225 * 250	350 * 390
Diameter of column	90	108
Total height of the Machine	1606	1778
H.P. of the motor	1	1.5
RPM	1440	1440
Vee Belt	B 46	B 55
swing	–	–
End mill cap	–	–
Net weight	190 Kgs.	300 Kgs.
