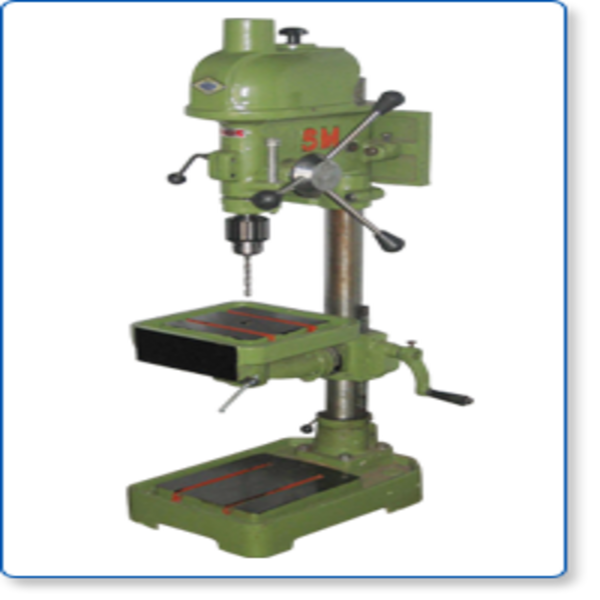

SPECIFICITIONS

S. No Specifications SMB 1 – 2

1. Drilling Capacity 20

2. No of spindle speeds 8

3. Range of speed 86 to 3326

4. Distance Between Spindle Center & Columm Face 215

5. Max. Distance of spindle to base 710

6. Max. Distance of spindle to work table 460

7. Table Travel 250

8. Spindle Travel 125

9. Table Size 270*270

10. Base Size 500*350

11. Working surface of base 275*300

12. Column Diameter 75

13. Columm Height 800

14 Spindle Nose Bore MT – 2

15. Motor Recommended 0.75KW (1 H.P.) 1440 RPM

16. V-Belt Size A – 43

17. Weight of Machine(appx) 100 KG
