Specification

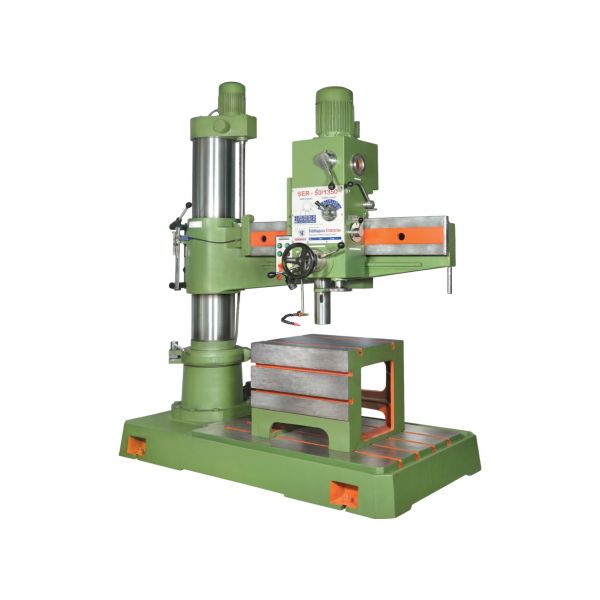

Model No. – SER-50/1350
Drilling Capacity (in MS) 50 mm
Tapping Capacity (in MS) 25 mm
Boring Capacity (in MS) 90 mm
Spindle Nose Taper MT-5
Spindle Diameter 85 mm
Spindle Travel 300 mm
No. of Spindle Speeds & Range 8 & 30 to 1300 RPM
No. of Quill Feeds & Range 6 & 0.06 to 0.5 mm/rev.
Column Diameter 300 mm
Drilling Radius Max./Min. 1325/445 mm
