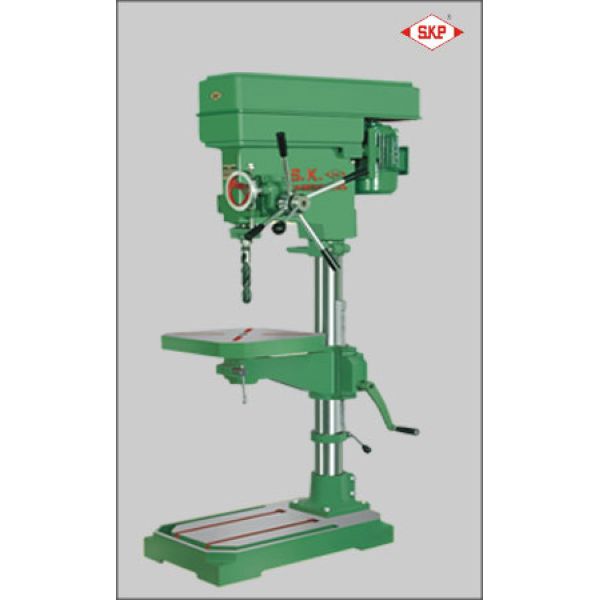

No. SPECIFICATION 25 SPR
1 Drilling Capacity 25 MM
2 No of Spindle Speed 8
3 Range Of Spindle Speed 250 to 1800
4 Spindle nose M.T. – 3
5 Spindle Center to column 261mm
6 Spindle travels 139mm
7 Table size 358 x 358 mm
8 Maximum Distance Spindle to Table 479 mm
9 Maximum Distance Spindle to base 898 mm
10 Working suface of base 460 x 374 mm
11 Overall Dimension 646 x 374 mm
12 Column diameter 87 MM
13 Overall dimension 1540 x 875 x 488
14 Motor capacity 0.75 kw / 1 h.p.
15 Motor R.P.M. 1440-2800
16 Weight of machine (Approx) 234 kg
