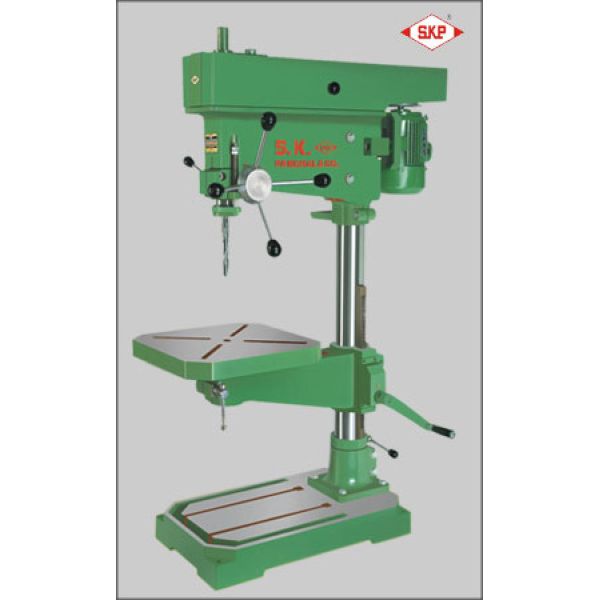

No. SPECIFICATION 20PR 15”C
1 Drilling Capacity 20 mm
2 No of Spindle Speed 8
3 Range Of Spindle Speed 86 to 3368
4 Spindle nose M.T.-2
5 Spindle Center to column 382mm
6 Spindle travels 130mm
7 Table size 408 x 408 mm
8 Maximum Distance Spindle to Table 520 mm
9 Maximum Distance Spindle to base 955 mm
10 Working suface of base 460 x 374 mm
11 Overall Dimension 646 x 374 mm
12 Column diameter 87 MM
13 Overall dimension 940 x 411 x 1520
14 Motor capacity 0.50 kw / 0.75 h.p.
15 Motor R.P.M. 1440
16 Weight of machine (Approx) 214 kg
