Technical Specifications :

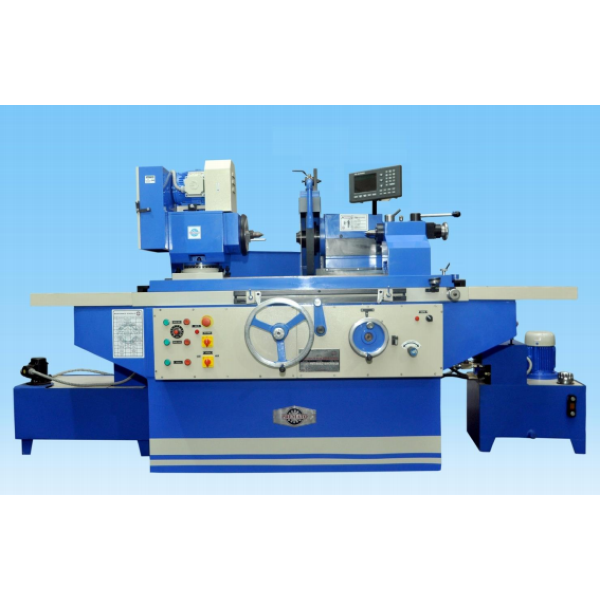

• Model: PMTU/600/180/H.
• Center Height: – 180
• Main Slide is hydraulically operated by reputed hydraulic cylinder.
• Ø 60 mm × 250 mm High precision internal grinding spindle having 16,000 rpm, fitted on attachment
• Hydraulic operated job clamping / de-clamping Collet system will be provided on customer demand.
• Work Head Speed range: – 50 to 450 rpm infinitely variable through imported 3 ph. A.C. variable drive.
• Inbuilt electrical control penal board having all reputed components.
• Automatic Lubrication on main moveable slide by flow control valve.
• Automatic in-feed by AC servo motor and ground ball screw directly coupled with imported coupling.
• LM Guide ways fitted on cross slide.
• Minimum Oscillation Stroke: – 2 mm through Proximity switch.
• Imported endless flat belt for high precision spindle to prevent slippage with dynamic Balanced pulley to avoid vibration
with all safety guards
POWER: –
(A) Wheel head: – 3 hp/ 5hp
(B) Work head: – 1 hp
(C) Hydraulic: – 1 hp
(D) Coolant pump: – 0.1 hp
