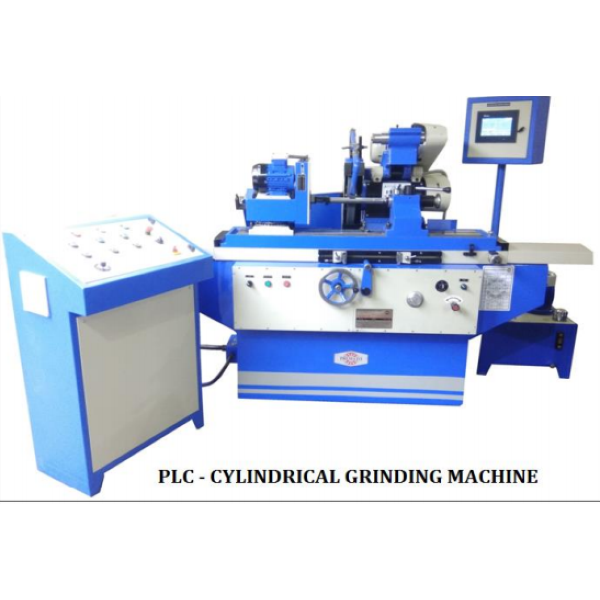

SPECIFICATIONS & FEATURES :
• Admit Between Center: 600mm
• Center Height: 130 mm
FEATURES :
• Auto in-feed with PLC control
• 0.001mm in-feed on diameter
• In-feed slide feed with AC servo motor, Precision ground ball screw & nut fitted with imported coupling
for zero backlash.
• Work speed is infinitely variable through 3 Phase VFD & safety interlocks.
• Separate electrical control panel board & hydraulic power pack unit for easy operate & maintain
• Paper band cum magnetic filtration system available optionally.
• Manual Pulse Generator – MPG hand wheel for in-feed.
• Internal Grinding Attachment with Ø60 X 250mm Length having 18,000 RPM High Precision spindle
• LM guide ways on cross feed side
• THK C₂ class ground ball screw on cross feed slide
• Ball screw support bracket with high precision p₄ grade Angular Contact Matched pair bearings
• Accuracy:- 0.002mm
• Selectable in feed:- 0.001, 0.01, 0.05, 0.10mm
• MPG Hand Wheel for 0.001mm in-feed.
• Machine Weight:- 1800Kg
