FETURES

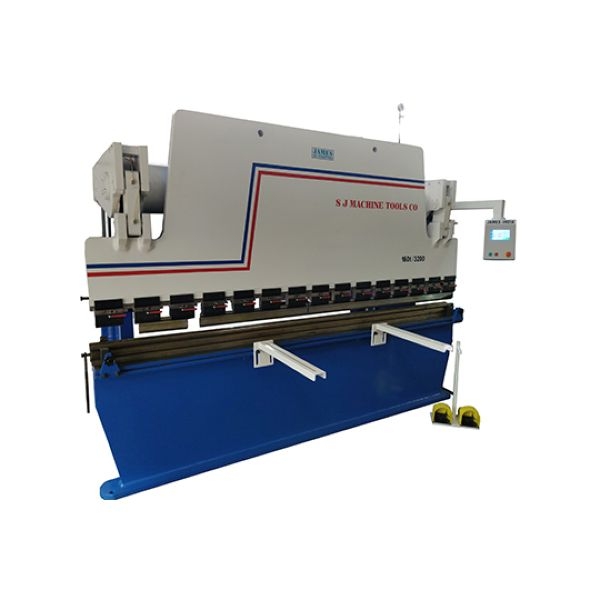

Cybelec CybTouch 8P Controller.
Punch Quick Release Clamp European Standard.
Punch hardened in segment cr42, European style top tool.
Quick changeover for sample production & mass production.
7” Touch screen Press brake controller from Cybelec Switzerland.
User friendly Colour Touch screen for easy programming.
Two axis automatic control – bending degree (Y Axis) & back gauge (X-Axis) program.
Multiple bends with different back gauge positions can be programmed.
200 programs & 24 bends with individual back gauge positions in one program.
Different 50 punches and Dies can be stored.
The back gauge repeated position accuracy within ±0.1mm.
Bend angle & depth mode programme can be possible.
Programmable back gauge retraction.
Programmable angle correction & back gauge correction.
Programmable open height on each bend.
Suitable for upgradation with special optional features.
High-speed back gauge movement by AC servo drive.
Smooth and Sturdy back gauge assembly equipped with hardened ball screw Hiwin.
Hiwin Linerar Guide Rail & timer belt.
Movable Backgauge fingers withe height adjustable Z stopper.
