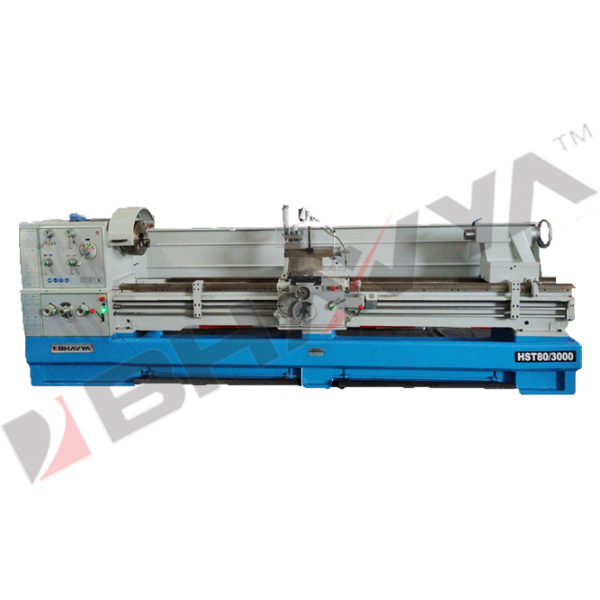

Particulars/Model HST41 HST46 HST51 HST56 HST66 HST80
Center Height 205mm 230mm 255mm 280mm 330mm 400mm
Swing Over Bed 410mm 460mm 510mm 560mm 660mm 800mm
Swing Over Cross Slide 220mm 270mm 305mm 355mm 440mm 570mm
Swing in Gap 640mm 690mm 735mm 785mm 900mm 1035mm
Length Of Gap 165mm 170mm 250mm
Width Of Bed 300mm 350mm 400mm
Admits Between Centre 1000/1500/2000mm 1000/1500/2000/3000mm 1500/2000/3000mm
Spindle Nose D1-6 D1-8 D1-8
Spindle Bore 58mm 80mm 105mm
Spindle Speed 12/25-2000rpm 12/25-2000rpm 16/25-1600rpm
Compound Rest Travel 128mm 130mm 230mm
