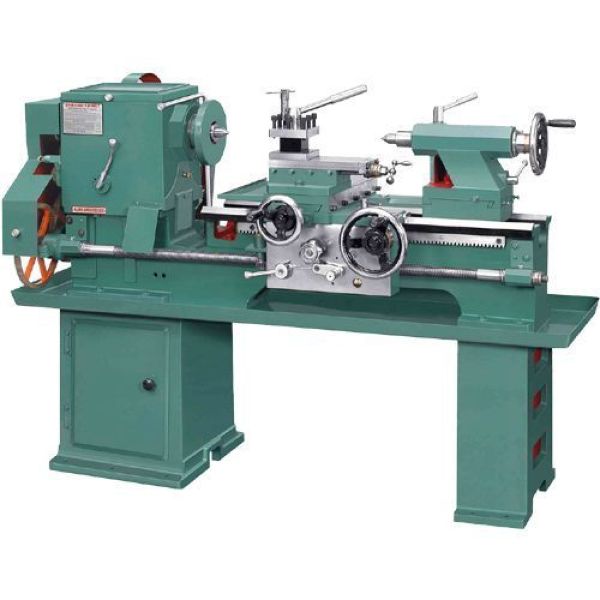

Particular Unit MEX 1 MEX 2 MEX 3
Length of bed. ft. 5′ 6.5′ 7.5′
Height of center. In. 9″ 9″ 9″
Max. Swing over Bed. In. Dia 17″ 17″ 17″
Max. swing over carriage. In. Dia 9.5″ 9.5″ 10.5″
Admit between centers. In. 24″ 42″ 54″
Width of bed. In. 11″ 11″ 11″
Length of gap in front of
face plate. In. 5″ 5″ 5″
Spindle bore. In. 2 125″ 2 125″ 2 125″
Lead screw Dia. & Pitch. In.4TPI 1.25″ 1.25″ 1.25″
Reqd. Power H.P. H.P. 1.5 1.5 1.5
RPM Min/Max.
45/450 45/450 45/450
No. of speeds. 6 6 6
Spindle bore 3.125 inch is also available in this models.
