• Manual Double Column Bandsaws Machines 180DCM

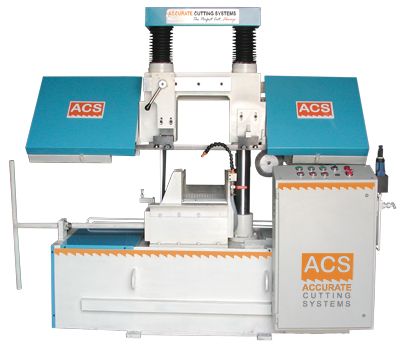

Manual Double Column Bandsaws Machines 180DCM
ACS 180 DCM
Request a Quote

Model ACS 180 DCM
Round (mm) 180
Flat(mm) 180 x 180
Band Dimension (mm 3000 x 27 x 9
Cutting Speed m/min 20-100
Saw Motor Power kw/hp 1.5/2
Hydraulic unit power kw/hp .75/1
Coolant pump power kw/hp .12/.16
Length – mm 1500
Width – mm 750
Height – mm 1250
Weight – kg 1000

Features For Manul Double Column Bandsaws Machine :
Double Acting Hydraulic Cylinder for Main Vice and Shuttle Vice.
Infinitely variable Feed Control Valve for Setting the Cutting Rate
Automatic height adjustment for saw frame to save idle time.
Length setting thru Digital Siko meters
(0.1mm Least Count)
Adjustable Heavy-duty movable blade guide with tungsten carbide wear pads & guide rollers.
Automatic Machine OFF, in case of Blade Breakage
Auto indexing for shuttle
Hydraulic band tension.
Step Pulley with V-Belts
Rubber Bellows for Column Protection.
Ergonomically designed Electrical Control Panel.
Chain drive with gearbox driven rotating wire brush
Grounded and Hard chrome plated Double Columns
