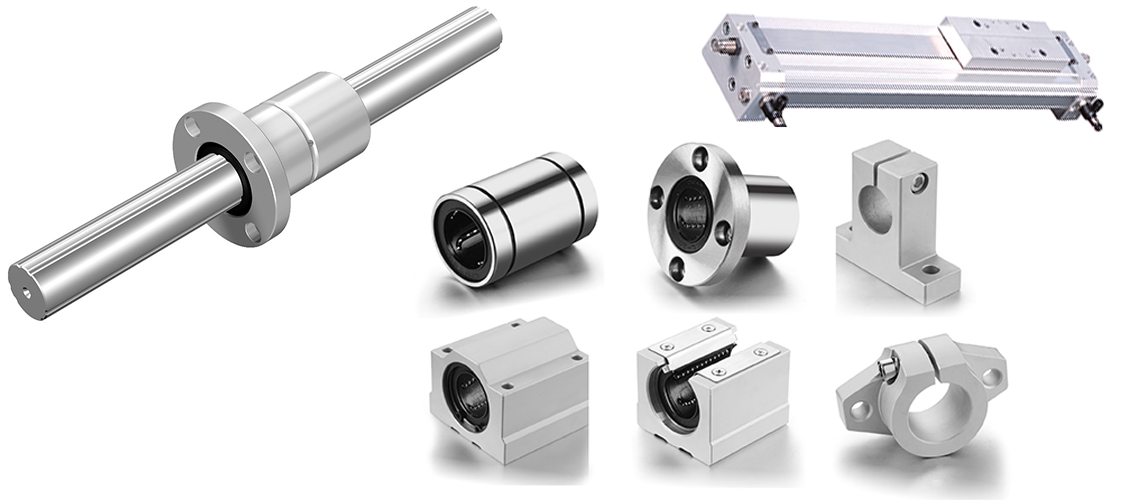

Usage Shaft for L.M. Bearing / Piston Rod For LM bearing moving equipment shaft for fitness equipment Guide Pillar, Side Rail.

Material : EN-8(D)/ EN-9 / EN-19 / EN-31 or as per customer requirement
Std size : 10mm to 100mm. above 100mm can be order
Std length : cut to customer length up to 7000mm
Hard chrome plating thickness : 20 to 25 micron
Surface Roughness : 0.2 RA
Surface Hardness : 60 HRC + 2
Chrome surface hardness : 850 to 1000 HV
Straightness : 0.1 per meter max.
Chrome layer micro hardness: min. 900HV0.1
Od Tolerance : g6
